Traction elevator parts are selected by three numbers — load, speed and roping — and one decision that comes before all of them: geared or gearless. Almost every wrong machine order traces back to one of those four.

This page covers the five machines we list, the sheaves, guide rails and compensation chains that travel with them, and the measurements to take off an existing installation before ordering a replacement. Rated values below are the published ones for each model, not estimates.

Geared or gearless: the first fork in an elevator traction system

The two families are not interchangeable at the same duty. A gearless machine drives the sheave directly and needs a low-speed, high-torque motor; a geared machine uses a reduction gearbox and runs the motor faster.

Choose gearless when

The lift is new, the machine room is small or absent, and smoothness and noise matter — hospitals, hotels, high-rise passenger lifts.

Gearless units are compact and efficient, but they need a controller configured for them and a brake that is maintained properly. Retrofitting gearless into a shaft designed around a geared machine usually changes the machine room layout.

Choose geared when

You are replacing an existing geared machine, the shaft and machine room are already built around it, or the duty is low-speed goods and service traffic.

Geared machines are heavier for the same load and need oil maintenance, but they drop into an existing footprint with far less ancillary work.

What actually changes in the shaft

Roping is the hidden difference. Our gearless models are rated at 2:1 roping; our geared models are rated at 1:1 suspension. Moving between the two changes the rope count, the sheave loading, the counterweight and in most cases the overhead clearance. It is a redesign, not a swap.

When a geared machine is still the right answer

Modernisation work on a 1990s shaft almost always stays geared, because the machine room, the beam positions and the controller all assume it. The honest recommendation for that job is a geared unit sized to the existing load, not a gearless unit chosen for efficiency.

The three numbers on a traction machine nameplate

Read the plate before reading the catalogue. Every model selection starts from these three values, and two of them are frequently misread.

Rated load, not car capacity

The load rating on the machine refers to the mass it has to move, which includes the car and the rated passenger load. A machine rated 450–630 kg covers a car whose P+Q falls in that band. Quoting only the passenger capacity understates the duty.

Rated speed, not contract speed

The machine's speed range describes what it can hold, not what the lift will run at. A unit rated 1.0–1.75 m/s can be set to any speed in that band by the controller; it cannot be set above it.

Roping, the number buyers forget

2:1 means the rope passes over a travelling sheave on the car, so the car moves half the rope travel. 1:1 means the rope terminates on the car. A 2:1 machine on a 1:1 installation will not produce the rated speed, and the error only shows up at commissioning.

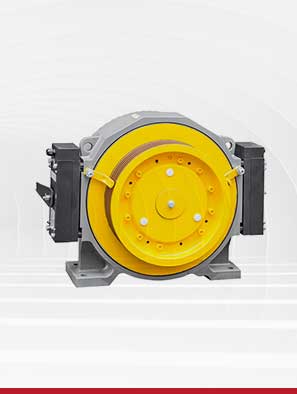

Gearless range: MONA200 and MCK100

Two gearless machines, both at 2:1 roping and both with a Φ320 sheave. They differ in load band and in mass, which is what decides which one fits an existing machine room.

Model Rated load Speed Roping Sheave Voltage Machine weight
MONA200 450 – 630 kg 1.0 – 1.75 m/s 2:1 Φ320 220 / 380 V 185 kg
MCK100 320 – 1000 kg 1.0 – 1.75 m/s 2:1 Φ320 380 V 210 kg

Why two models rather than one wider range

MCK100 covers a wider load band, from 320 kg to 1000 kg, and is the model for mixed portfolios where one machine type has to serve several car sizes. MONA200 is narrower and lighter at 185 kg, which matters when the machine has to be lifted into a rooftop room without a crane.

The voltage difference is not cosmetic

MONA200 is listed for 220 V or 380 V, MCK100 for 380 V. On a site with a 220 V supply, that single line decides the model.

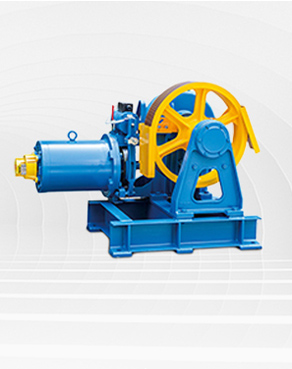

Geared range: YJ150, YJ125 and YJ110A

The three geared machines are all 1:1 suspension, and they are distinguished mainly by mass — which tracks the duty they are built for.

Model Suspension Machine weight Where it fits
YJ150 1:1 310 kg Heaviest of the three; existing machine rooms built for a larger geared unit
YJ125 1:1 195 kg Mid-range replacement where the beam capacity is limited
YJ110A 1:1 130 kg Lightest; low-rise and light-duty service lifts, easy to lift by hand

Weight is the constraint that decides a replacement

On a modernisation, the machine has to be carried up and set on the existing beams. A unit 100 kg heavier than the one it replaces can turn a two-person job into a crane job, and may exceed the beam design. Always quote the existing machine weight when asking for a geared replacement.

Load and speed for the geared range

Our published plate data for these three models lists suspension and mass. Load and speed are confirmed per order against the car duty — send P+Q and rated speed and we will return the matching model rather than leave you to infer it from weight alone.

Sheaves: diameter, material and rope

The sheave is the part that wears, and it is also the part most often ordered by diameter alone. Rope diameter and groove profile decide whether a sheave will work in your elevator traction system.

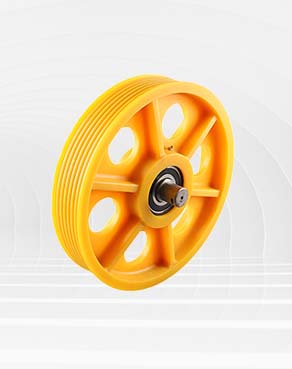

Cast iron or nylon

Cast iron sheaves last longer and are the default for traction duty. Nylon sheaves run quieter and are lighter, which suits smaller machines and applications where noise is the complaint. Both are listed at Φ240 with a 6.5 mm rope in our current range, and both are available in Φ240, Φ320 and Φ400.

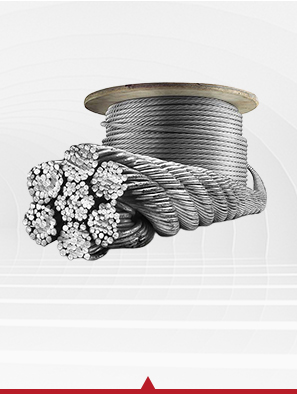

Match the rope, then the diameter

A sheave with the correct diameter but the wrong groove will either slip or cut the rope. Quote the rope diameter with the sheave every time — it is a two-field order, not a one-field order.

When to replace rather than re-groove

Re-grooving is possible while there is material left. Once the groove depth is worn past the limit, re-grooving changes the effective diameter and the rope speed with it. At that point a new sheave is the cheaper decision.

Guide rails, fishplates and compensation chains

These three travel with every set of traction elevator parts and are usually bought together with the machine, because the rail section and the rope weight both affect the machine selection.

Item Published specification What decides the order
Machined guide rail T78/B section, k = 10 mm Rail section and the machined length per stick; the k value is the machining allowance
Guide rail fishplate Stainless steel, dimensioned by d, b2, b3, l1, l2, l3, v Rail section — a fishplate is only correct for the rail it was machined for
Compensation chain Plastic-wrapped or full plastic; rated by weight per metre, bending diameter, broken load and max length Travel height and rope weight; long shafts need a heavier chain and a larger bending diameter

Why the compensation chain is a machine decision

The chain offsets the weight of the ropes on the car side as the car travels. Too light and the machine works against an unbalanced load at the top floors; too heavy and it overloads at the bottom. On tall shafts the chain is part of the machine calculation, not an accessory added later.

Replacing an elevator traction system: five measurements

  1. Existing machine weight — decides what can be carried in and set on the beams.
  2. Roping — 1:1 or 2:1, counted on the car, not assumed from the age of the lift.
  3. Sheave diameter and rope diameter — a pair; one without the other is not an order.
  4. P+Q and rated speed — from the data plate, both values.
  5. Machine room dimensions and lifting route — door width, headroom, and whether a crane can reach.
The fifth item is the one that stops installations. A machine that matches on paper and cannot pass the machine room door costs a crane call and a week. Send the doorway width with the enquiry and we will confirm the packing split before shipment.

Send the existing nameplate and the machine room photo. We will confirm roping, sheave and weight for the elevator traction system you are replacing, and flag it if the new unit needs a different lifting plan.
