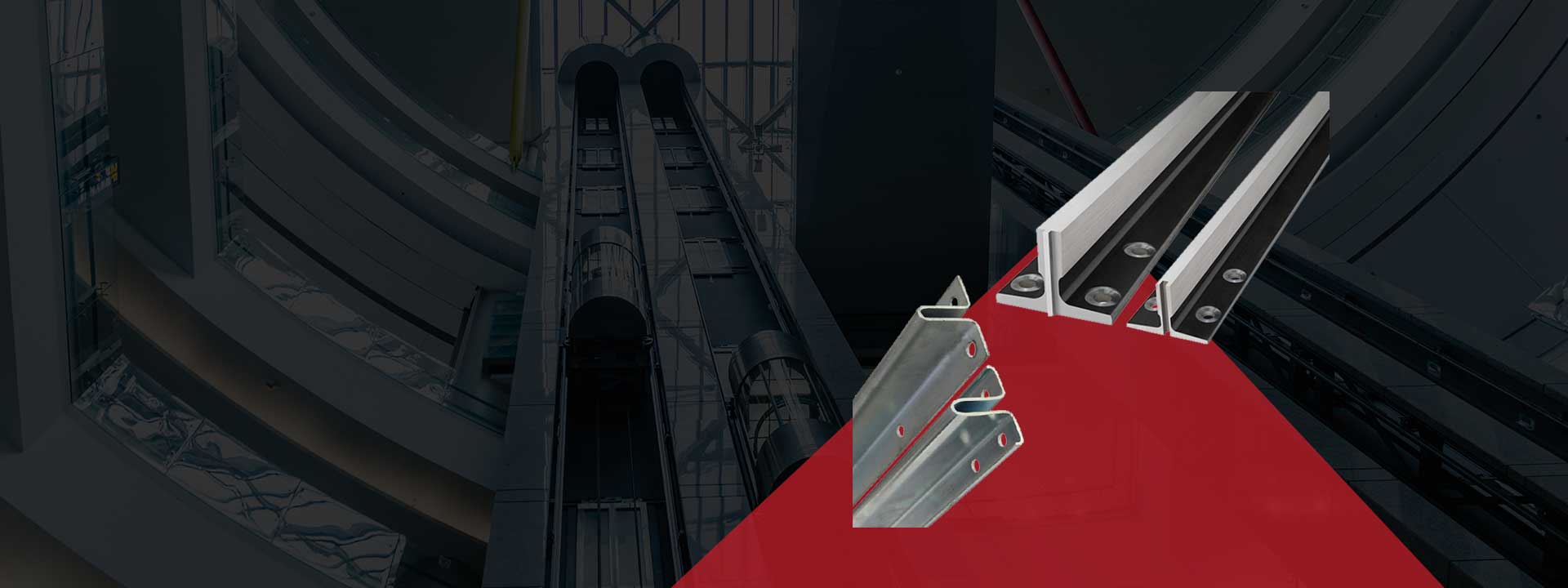

Elevator Guide Rail

Elevator guide rails are elevator components composed of steel elevator rails and connecting plates, which are divided into car guide rails and counterweight guide rails. Panda Elevator is a professional manufacturer and supplier of various elevator guide rails, fishplates and guide rail accessories. The elevator guide rail is suitable for new elevator installations, old elevator modernization and after-sales service.

Request A Quote

Elevator Guide Rail Types

Machined Guide Rail

T70/B, T75/B, T82/B, T89/B, T90/B, T114/B, T127/B, T140/B elevator guide rails are Machined Type Elevator Guide rail.

Cold Drawn Guide Rail

T45A,T50A,T70-1A elevator guide rails are Cold Drawn Elevator Guide rails.

Hollow Guide Rail

Hollow guides are mainly suitable for counterweight side, including TK3, TK5, TK5 and TK5A.

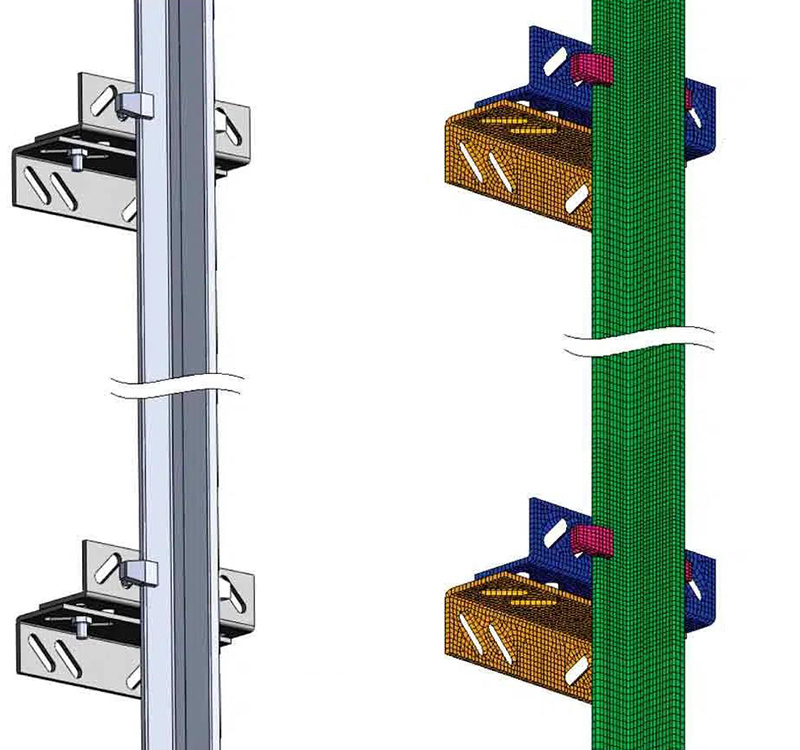

Elevator Guide Rail Installation

1. The elevator guide rail seat in the pit must be flat, the horizontal height should not exceed 1/1000, the height is generally 60mm, and the surrounding area should be filled with concrete;

2. Check that the straightness of the guide rail is not greater than 1/6000, and the elevator guide rail that does not meet the requirements must be corrected or replaced. Check whether the guide rail is damaged, and clean it before installation;

3. Use the hoist to hoist the guide rails one by one, and install them from bottom to top. The top end elevator guide rail should be cut off and installed according to the actual length;

4. Adjust the elevator guide rail from bottom to top with the guide rail ruler, and correct it immediately if any deviation is found.

Panda Elevator Guide Rail Highlights

Selected High-quality Raw Materials

We cooperate with the source steel factory, select high-quality steel, and apply strict quality control to ensure that customers receive the highest quality products with high quality elevator guide rail material.

Choice Of Many Elevator Factories And Companies

Many elevator factories and companies at home and abroad have chosen our products, and our products have won unanimous praise because of our high elevator guide rail standards.

Competitive Elevator Guide Rail Price

As the world's largest importer and producer of iron ore as well as one of top elevator components suppliers, we have elevator guide rail price advantages over other countries in the world.
