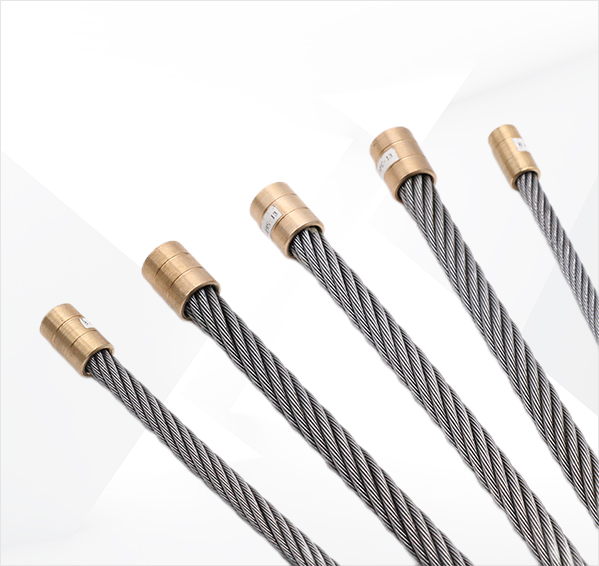

Elevator Steel Wire Rope

Name: Elevator Steel Wire Rope
Brand: SUZHOU PANDA ELEVATOR CO., Ltd.

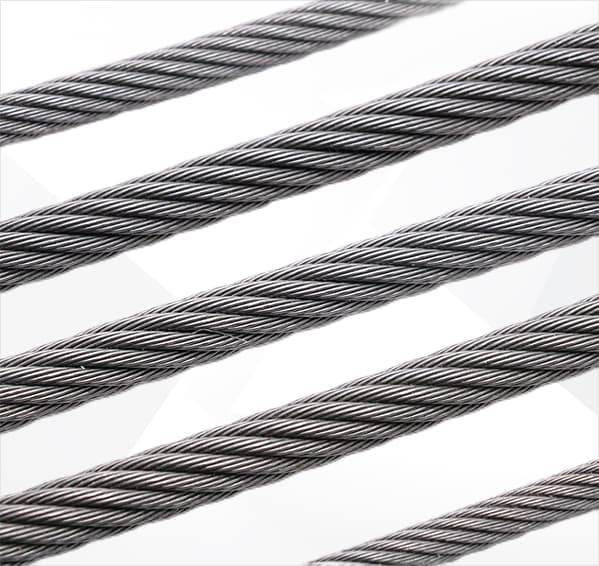

The elevator steel wire rope connects the elevator car and the counterweight, and is an important part of the elevator system. According to its structure, the steel wire rope for elevator can be divided into fiber core wire (FC) and independent wire rope core wire (IWRC). Panda Elevator provides high-quality elevator steel wire ropes, overspeed governor wire ropes for new elevator installations, elevator modernization, and after sales service.

Steel Wire Rope for Standard Elevator

Steel Wire Rope for High Speed Elevator

Steel Wire Rope for Overspeed Governor

Basic Information of Steel Wire Rope for Standard Elevator

Application	Elevator traction rope	Shipping	FCL/LCL
Diameter	Φ8-Φ22	Package	Reel/wooden box/Pallet
Elevator Speed	≤2m/s	Warranty	1 year
Traveling height	≤60m	MOQ	500m

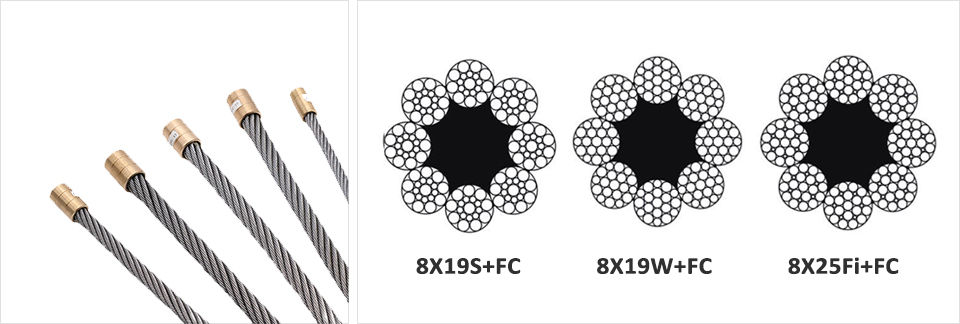

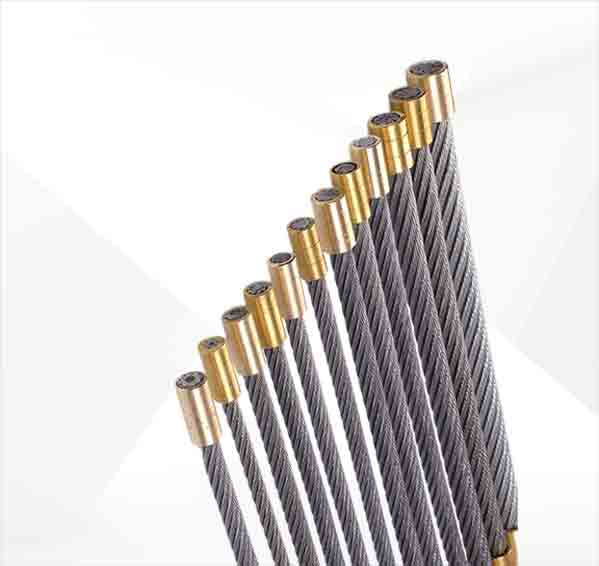

Photos and Drawing of Steel Wire Rope for Standard Elevator

Specifications of Steel Wire Rope for Standard Elevator

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
		Dual Tensile, Mpa		Single Tensile, Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

Basic Information of Steel Wire Rope for High Speed Elevator

Application	Elevator traction rope	Shipping	FCL/LCL
Diameter	Φ8-Φ22	Package	Reel/wooden box/Pallet
Elevator Speed	2m/s≤speed≤4m/s	Warranty	1 year
Traveling height	≤120m	MOQ	500m

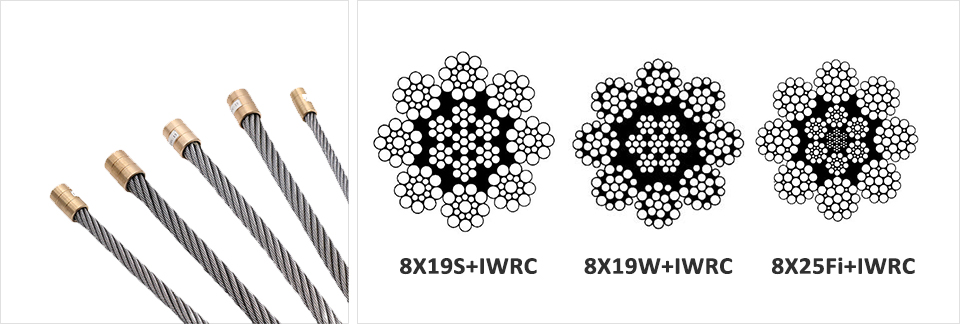

Photos and Drawing of Steel Wire Rope for High Speed Elevator

Specifications of Steel Wire Rope for High Speed Elevator

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
		Dual Tensile, Mpa		Single Tensile, Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	26	35.8	38	35.8	40.3
9	33	45.3	48.2	45.3	51
10	40.7	55.9	59.5	55.9	63
11	49.2	67.6	79.1	67.6	76.2
12	58.6	80.5	85.6	80.5	90.7
13	68.8	94.5	100	94.5	106
14	79.8	110	117	110	124
15	91.6	126	134	126	142
16	104	143	152	143	161
18	132	181	192	181	204
19	147	202	215	202	227
20	163	224	238	224	252
22	197	271	283	271	306

Basic Information of Steel Wire Rope for Overspeed Governor

Application	Overspeed governor rope	Shipping	FCL/LCL
Diameter	Φ6-Φ8	Package	Reel/wooden box/Pallet
Elevator Speed	≤2m/s	Warranty	1 year
Traveling height	≤60m	MOQ	500m

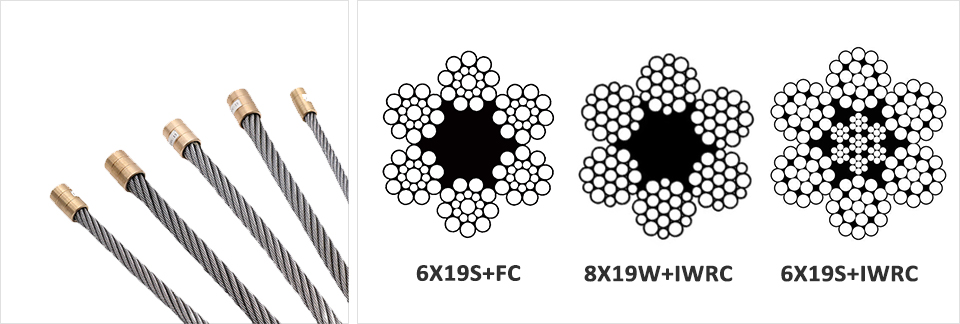

Photos and Drawing of Steel Wire Rope for Overspeed Governor

Specificaitions of Steel Wire Rope for Overspeed Governor

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
		Dual Tensile, Mpa		Single Tensile, Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
6.3	14.2	--	21.5	--	23.2
6.5	15.2	20.9	22.9	21.9	24.7
8	2	31.7	34.6	33.7	37.4

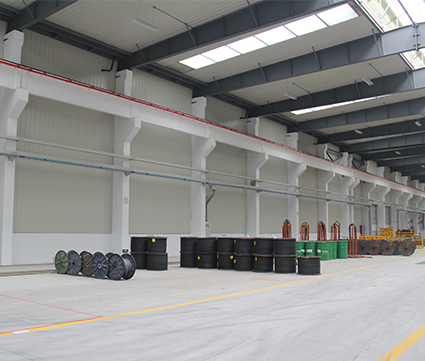

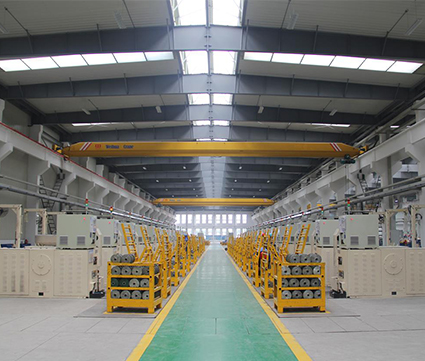

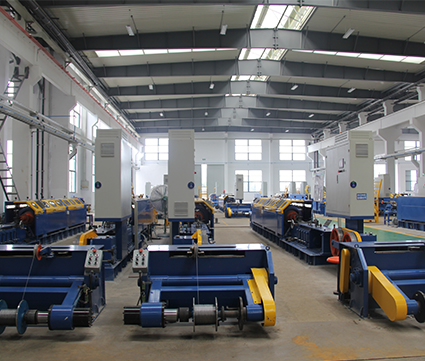

Elevator Steel Wire Rope Factory Pictures

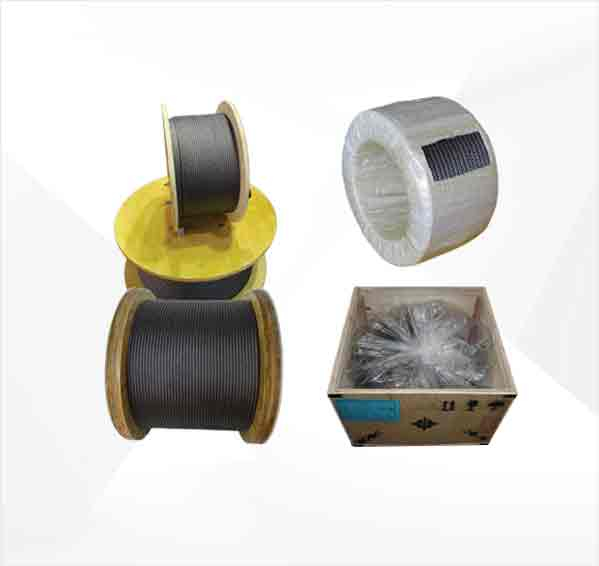

Elevator Steel Wire Rope Logistics

Before the logistics transportation, Panda Elevator, as one of top elevator components suppliers, will have multiple processes to inspect and package the products to ensure that each product is delivered to customers with good quality.
