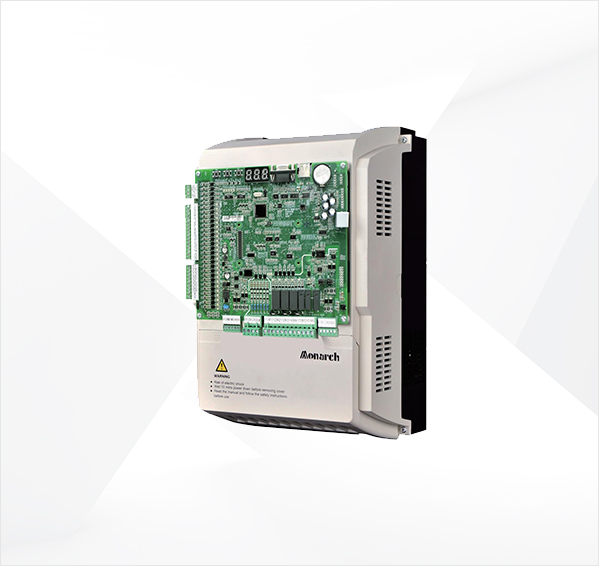

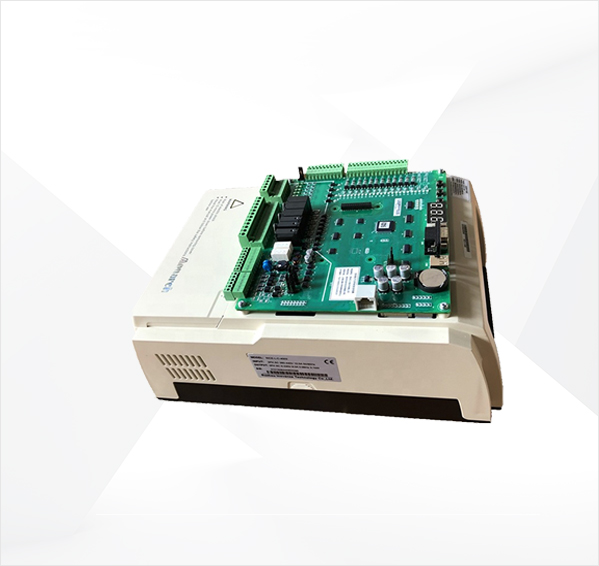

NICE3000 Elevator Integrated Controller

NICE3000 new integrated elevator controller. Monarch nice 3000 elevator controller can drive both AC asynchronous motors and permanent magnet synchronous motors.Nice3000 elevator integrated controller supports direct parallel control of two elevators and group control of multiple elevators, and supports CANbus and Modbus communication protocols for remote monitoring. The nice 3000 new integrated elevator controller is widely used in residential, office buildings, shopping malls, hospitals and other elevators.

Nice3000 Elevator Integrated Controller Basic Information

Name	NICE3000 accessories	MOQ	1pc
Application	Controller parts	Shipping	Air shipping/FCL/LCL
Working condition	-20℃～+65℃	Package	Standard package
Standard	EN81	Warranty	1 year

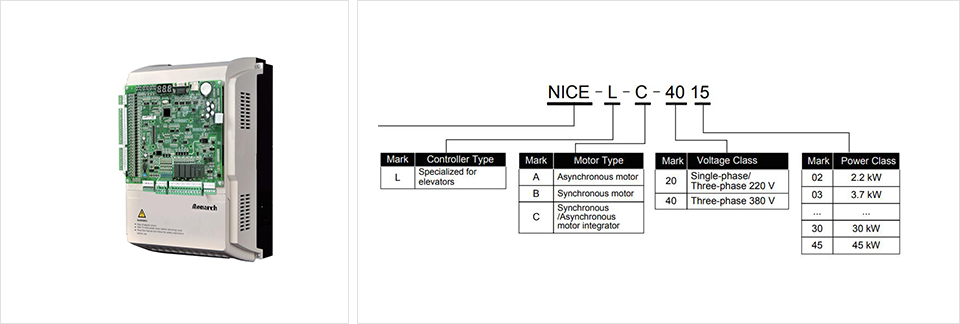

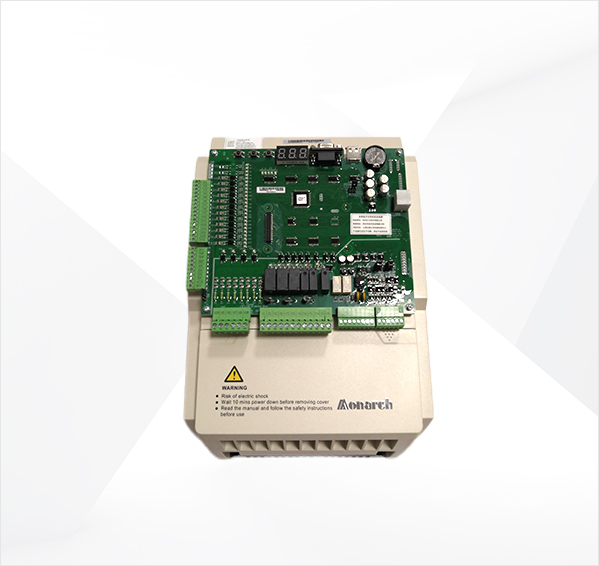

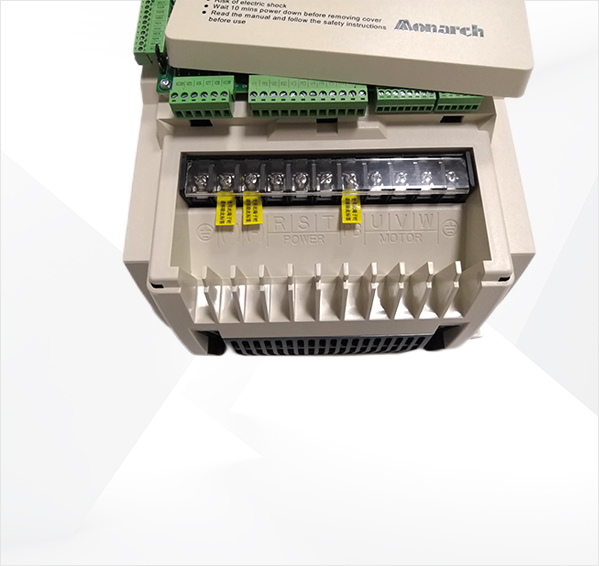

Nice3000 Elevator Integrated Controller Photos and Drawing

Nice3000 Elevator Integrated Controller Specifications

Application	Model	Power Capacity(KVA)	Input Current(A)	Output Current(A)	Motor Power(kW)	Product Dimension(mm)			Gross Weight(kg)
Application	Model	Power Capacity(KVA)	Input Current(A)	Output Current(A)	Motor Power(kW)	Height	Width	Depth	Gross Weight(kg)
1P220V, 50/60HZ	NICE-L-C-2002	2	9.2	5.2	1.1	347	223	143	5.5
	NICE-L-C-2003	2.9	13.3	7.5	1.5	347	223	143	5.5
	NICE-L-C-4007	3.9	17.9	10.3	2.2	347	223	172.5	7
	NICE-L-C-4022	5.9	25.3	15.5	3.7
	NICE-L-C-4015	7.3	31.3	19	4
	NICE-L-C-4018	8.6	34.6	22.5	5.5	554.5	259.6	207.7	14.5
	NICE-L-C-4022	10.6	42.6	27.7	11
	NICE-L-C-4030	13.1	52.6	34.6	15
3P220V, 50/60HZ	NICE-L-C-4002	4	11	9.6	2.2	347	223	143	5.5
	NICE-L-C-4003	5.9	17	14	3.7	347	223	143	5.5
	NICE-L-C-4007	7	20.5	18	4	347	223	172.5	7
	NICE-L-C-4022	10	29	27	5.5
	NICE-L-C-4015	12.6	36	33	7.5
	NICE-L-C-4018	15	41	39	11	554.5	289.6	207.7	14.5
	NICE-L-C-4022	18.3	49	48	15
	NICE-L-C-4030	23	62	60	18.5
3P380V, 50/60HZ	NICE-L-C-4002	4	6.5	5.1	2.2	347	223	143	5.5
	NICE-L-C-4003	5.9	10.5	9	3.7
	NICE-L-C-4005	8.9	14.8	13	5.5
	NICE-L-C-4007	11	20.5	18	7.5	347	223	173.5	7
	NICE-L-C-4011	17	29	27	11
	NICE-L-C-4015	21	36	33	15
	NICE-L-C-4018	24	41	39	18.5	554.5	289.6	223	14.5
	NICE-L-C-4022	30	49.5	48	22
	NICE-L-C-4030	40	62	60	30
	NICE-L-C-4037	57	77	75	37	600	385	268.42	32

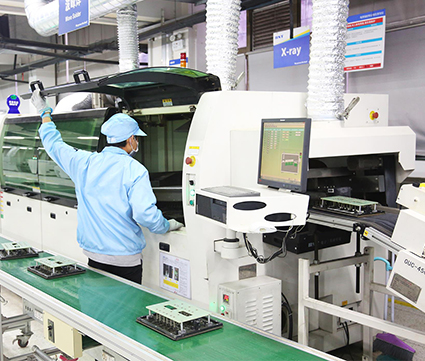

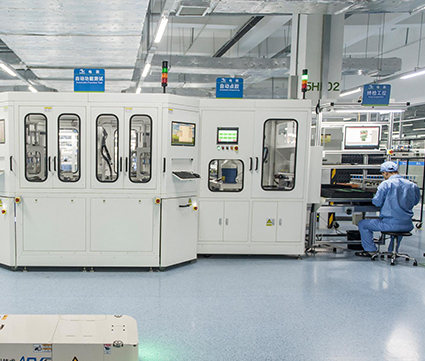

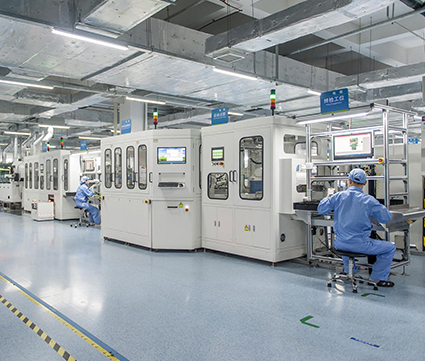

Nice3000 Elevator Integrated Controller Factory Pictures

nice3000 elevator integrated controller manufacturer

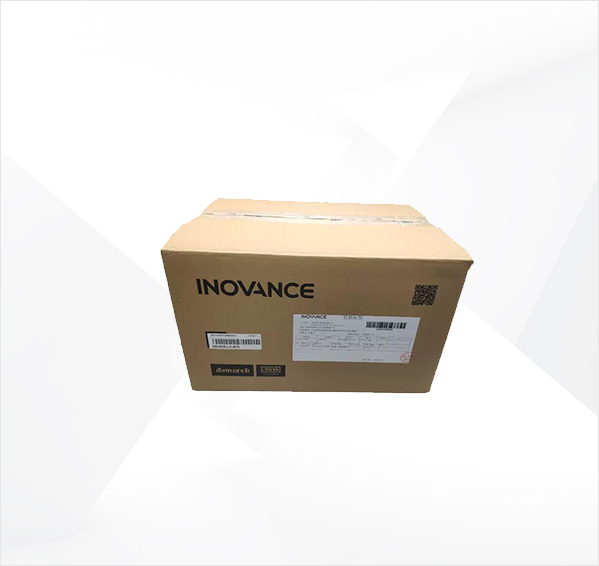

Nice3000 Elevator Integrated Controller Logistics

Before the logistics transportation, we will have multiple processes to inspect and package the products to ensure that each integrated elevator controller is delivered to customers with good quality.
