What Are Guide Shoes in an Elevator? (Definition & Functions)

An elevator guide shoe is a mechanical device mounted between an elevator car or counterweight and the vertical guide rails. Its primary purpose is to constrain lateral movement and rotation so the car and counterweight move strictly along the guide rails. A typical guide shoe assembly includes the shoe body, shoe pad or liner (often made from nylon or other polymer), a shoe holder/base, and a lubrication cup or channel.

Guide shoes perform four essential functions:

• Fixing & guidance: keep the car and counterweight centered on the rail to prevent sway or tilt during travel.
• Friction management: provide a sliding or rolling interface to reduce wear and control motion along the rail.
• Ride comfort: reduce vibration and noise that passengers experience—especially important in higher-speed installations.
• Safety cooperation: work together with safety gears (safeties) so that, in an emergency, the safety mechanism engages cleanly on a properly aligned rail.

In short, guide shoes may seem like small parts, but they play a disproportionate role in the reliability, comfort and safety of elevator operation.

Types of Elevator Guide Shoes

Guide shoes are broadly classified by how they contact the rail and how they manage friction. Understanding the differences helps in choosing the right type for a given elevator.

Sliding (Plain) Guide Shoes

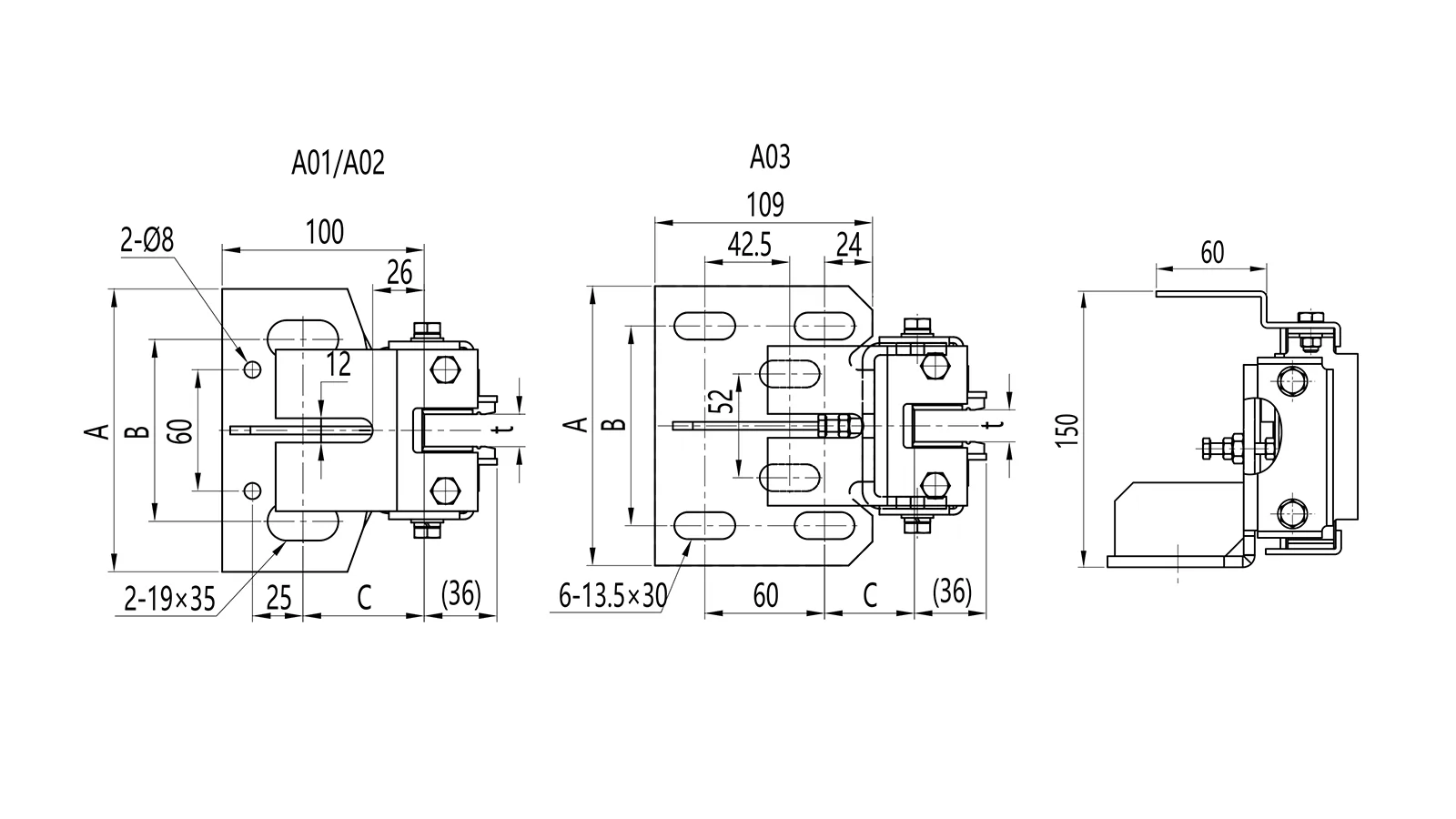

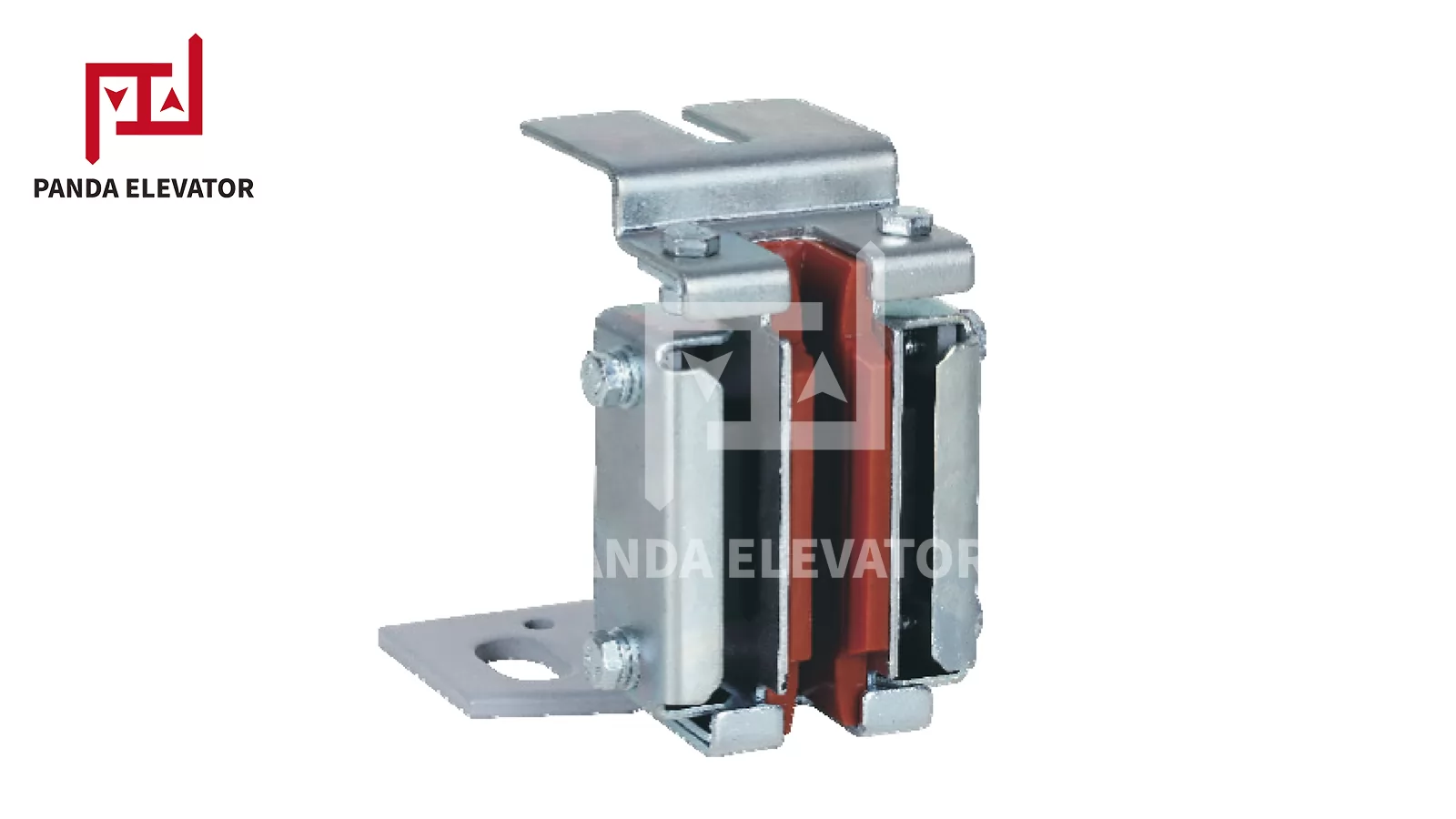

Click up the Left Picture to Learn More Information About the Product

Get A Quote Now!

Sliding guide shoes use a wear liner (commonly nylon or other polymer) that slides directly against the guide rail. They are simple, cost-effective and widely used in low- to medium-speed elevators. Advantages include low initial cost and simple construction. Disadvantages are higher sliding friction, faster liner wear, and potentially more noise and vibration as the liner degrades.

Rolling Guide Shoes

Rolling guide shoes use wheels or rollers that roll along the rail, significantly reducing friction compared with sliding shoes. They are commonly used in medium- and high-speed elevators where minimizing energy loss, noise and vibration is important. Rolling shoes typically require more precise alignment and have higher maintenance costs due to bearings and wheel replacements.

Hydraulic or Damped (Passive) Guide Shoes

Newer designs integrate hydraulic damping to absorb lateral energy and reduce vibration. These passive dampers are particularly helpful in high-speed elevators and installations where noise and ride smoothness are priorities. They tend to be more expensive but can extend the life of other components and improve passenger comfort.

Material & Liner Variations

Liner materials range from conventional nylon to engineered high-performance polymers and composite materials designed for improved wear resistance and environmental performance (low dust generation, recyclability). Choosing liner material affects wear rate, noise, and the required lubrication schedule.

Installation and Typical Quantity

A conventional passenger elevator commonly has multiple guide shoes distributed on the car and counterweight to ensure stable guidance:

• Car (cab): typically installed at the top and bottom corners of the car frame — often two at the top and two at the bottom (4 total).
• Counterweight: similarly fitted with two at the top and two at the bottom (4 total).

This typical layout results in 8 guide shoes per elevator (4 on the car, 4 on the counterweight). The exact configuration can vary by design (e.g., rail type, car size, whether side or rear guides are used) and special installations (machine-room-less, traction vs. hydraulic systems).

Correct positioning and secure mounting are critical. Misaligned or loose guide shoe mounts can induce rail contact irregularities, accelerate wear, and create safety issues during emergency braking or safety gear engagement.

Maintenance Best Practices for Guide Shoes

Guide shoes are wear items—regular inspection and preventive maintenance preserve ride quality and safety while avoiding costly downtime. Below are recommended maintenance actions and intervals. (Always follow the manufacturer's specific service manual for precise intervals and methods.)

1. Regular Lubrication

Check the oil cup or lubrication channel regularly and keep liner surfaces supplied with the correct lubricant type. Proper lubrication lowers friction, reduces wear and can improve energy efficiency.

2. Inspect Liners for Wear

Shoe liners (the replaceable polymer pads) wear over time. Inspect for grooves, delamination, excessive thinning, or contamination. Replace liners before wear reaches the minimum allowable thickness specified by the manufacturer to avoid metal-to-metal contact.

3. Check Mounting & Clearance

Verify that guide shoes are securely fastened and that the lateral and vertical clearances to the guide rail are within acceptable tolerances. Excessive clearance can cause rattle and misalignment; insufficient clearance can bind or increase friction.

4. Clean Guide Rails

Keep rails free from dirt, grease contamination or debris. A clean rail surface helps liner wear evenly and reduces the chance of unexpected sticking or noise.

5. Monitor Ride Quality & Noise

Regularly record passenger feedback and perform bump, vibration or noise checks at different speeds. Early detection of rising vibration or noise can indicate liner wear, misalignment or lubrication failure.

Proper documentation of inspections and repairs is essential for both safety compliance and lifecycle cost analysis.

How Guide Shoes Affect Elevator Performance

Though small, guide shoes influence multiple operational metrics:

Comfort & Passenger Experience

Worn or poorly maintained guide shoes increase vibration and noise, directly degrading ride comfort. High-speed elevators are particularly sensitive—small imperfections amplify at speed, making roller or damped guide shoes a preferred choice for premium installations.

Energy Consumption

Friction between shoe and rail is a continuous energy sink. Sliding shoes typically have higher friction than rolling shoes; therefore, a worn sliding shoe increases motor load and energy consumption. Regular maintenance reduces unnecessary energy loss.

Safety & Reliability

Guide shoe failure may allow the car to tilt or drift, which can complicate the function of safety devices. In emergency conditions (such as the activation of safety gear), a properly aligned and functioning guide shoe ensures predictable engagement and reduces risk.

In short, good guide shoe selection and upkeep improve comfort, reduce operating cost, and strengthen safety margins.

Market Insights & Technology Trends

Guide shoes are a mature component, but ongoing R&D focuses on materials, damping systems and lifecycle-cost reduction. A few notable trends:

• Advanced liner materials: engineered polymers and composites that offer longer wear life, lower friction and better environmental profiles (less dust, recyclable options).
• Damped guide shoes: hydraulic or viscoelastic damping to reduce lateral vibration in high-speed installations.
• Roller technology improvements: longer-life bearings and wheel materials that reduce maintenance frequency.
• Digital condition monitoring: sensors and predictive maintenance systems that track vibration, temperature and wear to trigger maintenance before failure.

Market size and demand are driven by new elevator installations and the retrofit/maintenance market in existing buildings. For reference, one industry data point indicates China has a very large installed base, which creates substantial ongoing demand for guide shoe manufacturing and innovation.

Safety Standards, Regulations & Practical Advice

Guide shoes are part of the broader safety ecosystem of an elevator. In many jurisdictions, elevator maintenance and safety checks are regulated under special equipment or elevator safety laws (for example, national-level regulations translated as the "Regulations on the Safety Supervision of Special Equipment"). These rules typically require scheduled inspections, documented maintenance records, and adherence to manufacturer limits for wear and clearances.

Practical Advice for Building Owners & Maintenance Teams

1. Follow manufacturer guidance: use specified liners, lubricants and torque settings for mounting bolts.
2. Schedule preventative maintenance: set intervals based on traffic, environment and shoe type—high-traffic or dusty environments require more frequent checks.
3. Document all work: maintain clear records of liner replacements, lubrication, and clearance adjustments to demonstrate compliance and to analyze lifecycle costs.
4. Use qualified technicians: guide shoe replacement and alignment should be handled by certified elevator technicians to ensure rail alignment and safety gear cooperation remain intact.
5. Plan retrofits wisely: when upgrading to rolling or damped shoes, assess the whole guidance system (rails, fastenings, and safety gear) to ensure compatibility and avoid unintended problems.

FAQs

How often do guide shoes need to be replaced?

Replacement intervals vary by shoe type, traffic load and environment. Sliding liners in busy passenger lifts may need replacement every 1–3 years; rolling components often last longer but require periodic bearing checks. Always refer to manufacturer minimum thickness and wear limits.

Is elevator shaking always caused by guide shoes?

Not always. Shaking can result from guide shoe wear, misalignment, rail defects, hoisting rope issues, or problems with the drive system. Guide shoes are a common cause, so they should be among the first elements inspected.

Which is better: sliding or rolling guide shoes?

It depends on application. Sliding shoes are economical and adequate for many low- to medium-speed lifts. Rolling shoes offer lower friction and better ride quality for higher-speed or premium installations but have higher initial and maintenance costs. Damped shoes offer the best ride comfort where vibration control is critical.

Can better maintenance save energy?

Yes. Maintaining liners and lubrication reduces frictional losses, which marginally reduces motor work and energy consumption—over a large fleet or long timeline, the savings accumulate.

Conclusion & Next Steps

Guide shoes are small but vital parts of any elevator: they maintain alignment, control friction, improve passenger comfort and support the correct operation of safety devices. Choosing the right type (sliding, rolling, damped), using suitable materials, and implementing a disciplined maintenance program will maximize performance and safety while minimizing lifetime costs.

Actionable next steps: schedule a professional inspection if you notice increased noise or vibration; keep maintenance logs; and consult your elevator or guide shoe manufacturer before switching shoe types or liners. For building managers, make guide shoe checks part of your routine preventive maintenance checklist.
