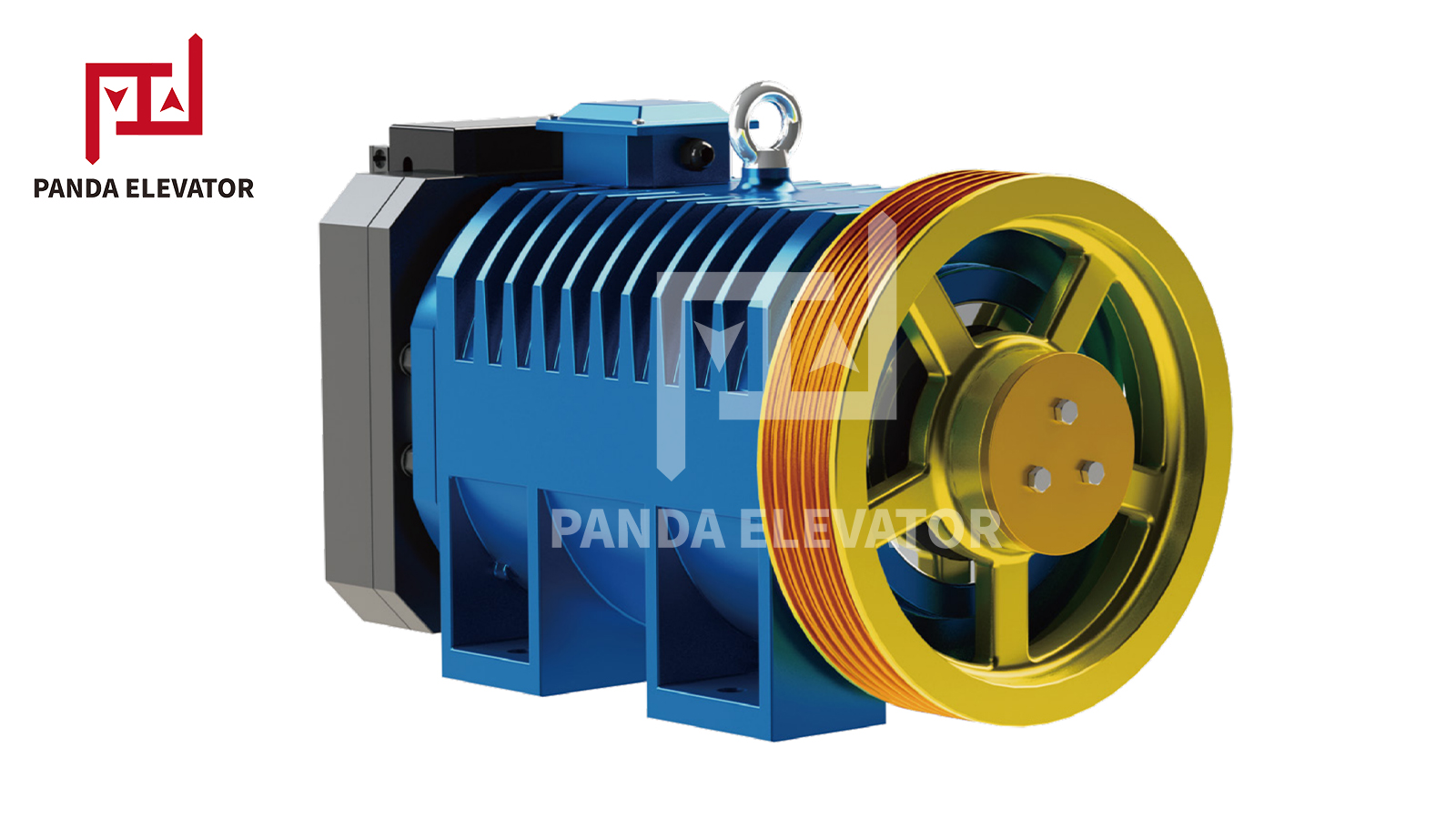

Gearless Elevator Traction Machine Mona200

Mona200 gearless traction machine adopts efficient permanent magnet synchronous technology and gearless transmission design, which has the characteristics of compact structure, energy saving and low noise, and easy maintenance.

Gearless Transmission Design

Reducing mechanical losses, running quieter, and having a longer lifespan.
Low Maintenance Requirements

Gearless design reduces worn parts, lowers maintenance costs, and enhances reliability.
Low Maintenance Requirements

Integrated advanced control algorithms, smooth start stop, precise operation.

Elevator Parts

HOT PRODUCTS

Elevator Car Door Operator Center opening OMJ102A

Elevator Leveling Sensor

Set A Consultation Today

*We respect your confidentiality and all information are protected.

Send

Description

Reviews

Basic Information

Type	Gearless Traction Machine	Model	MONA200
Voltage	220V/380V	Roping	2:1
Load	(450-630)kg	Speed	(1.0-1.75)m/s
Sheave Diam.	Φ320	Weight	185kg
MOQ	1pc	Shipping	FCL/LCL
Package	Standard package	Warranty	1 year

Specification

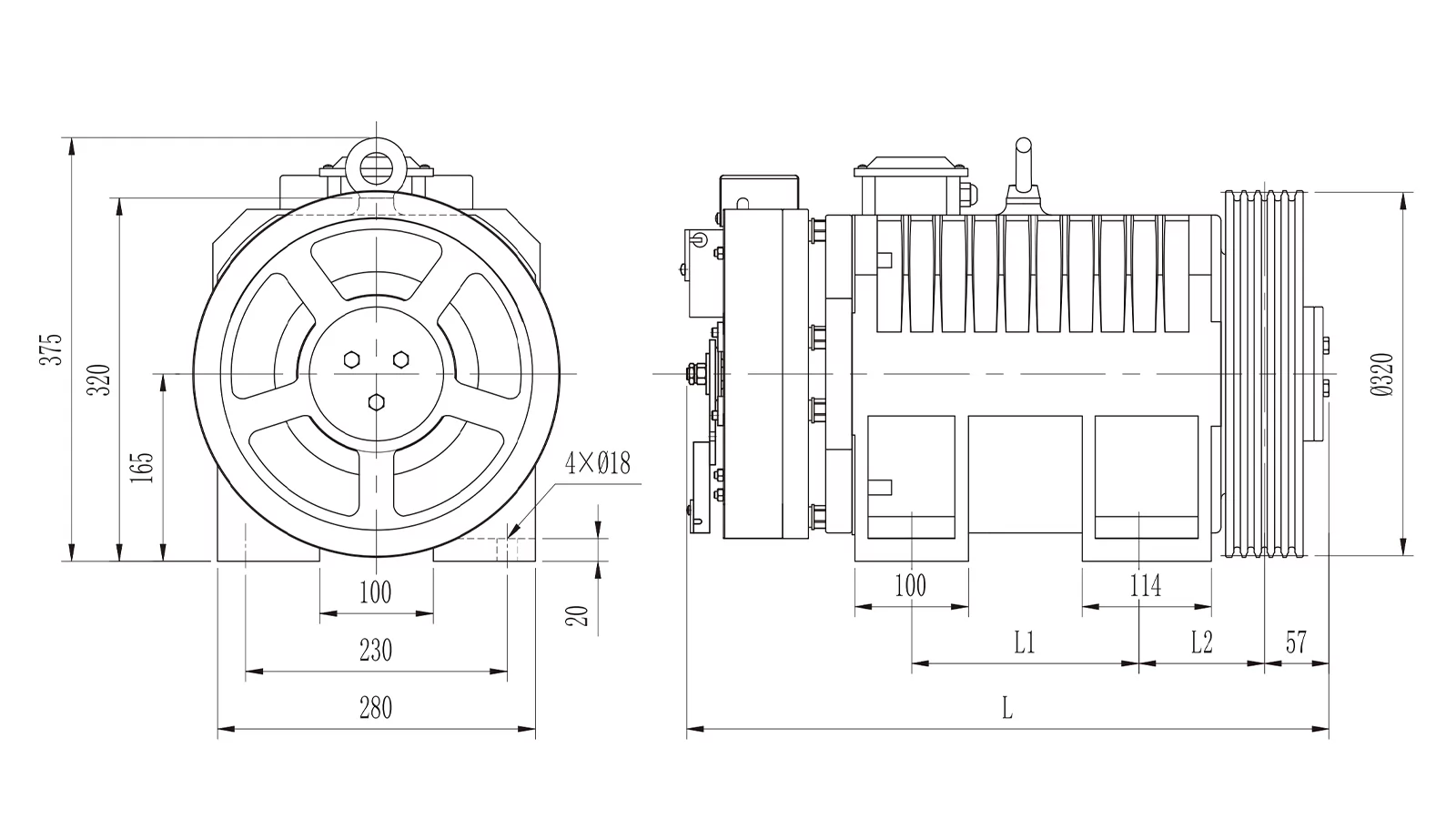

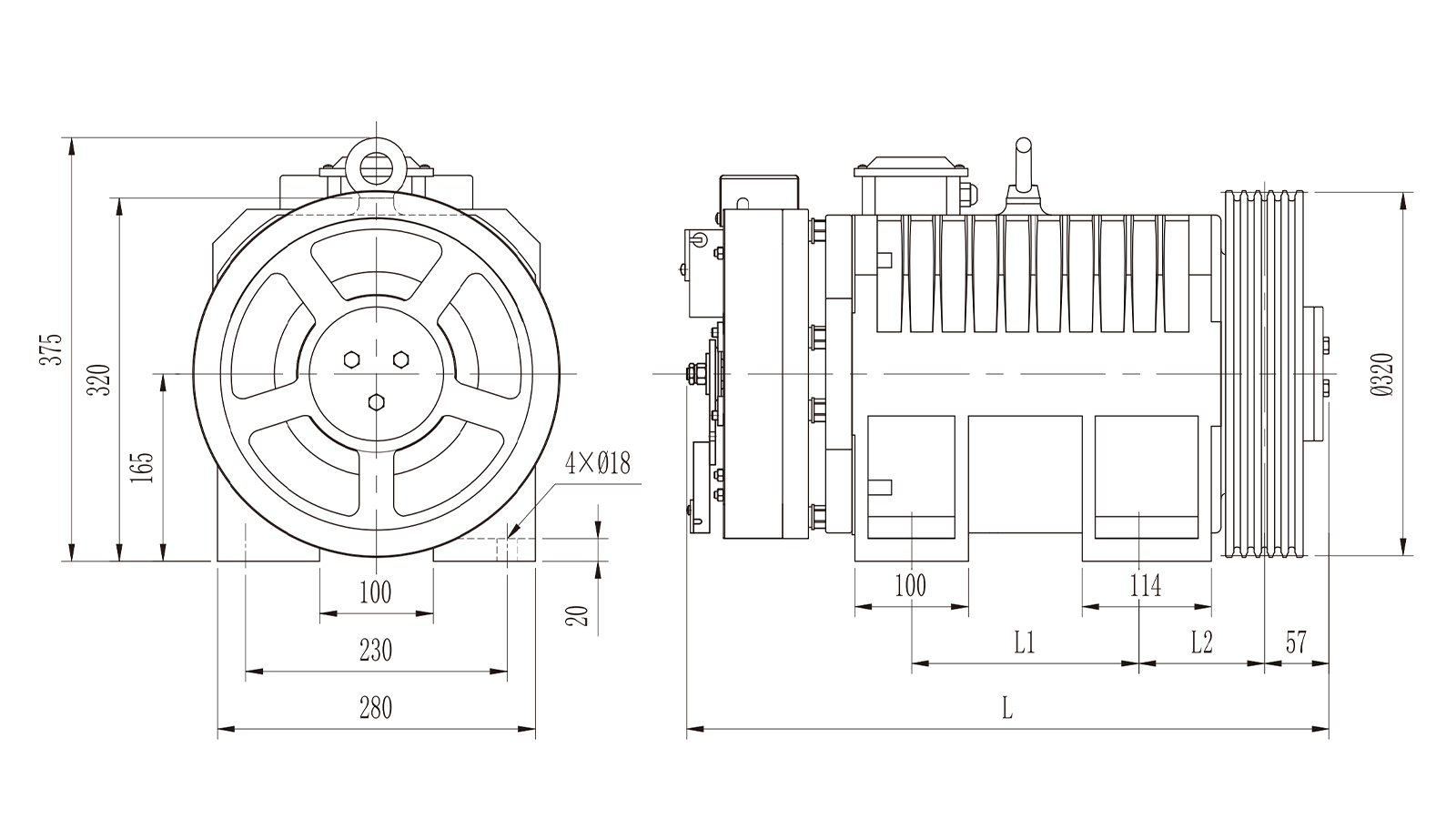

Spec.	Load	Elv. Speed	Sheave Dia	Sheave Groove	Voltage	Current	Power	Speed	Freq.	Torque	Poles	L	L1	L2	β Angle
	kg	m/s	mm	mm	V	A	KW	r/min	Hz	N·m		mm	mm	mm	°
450-1.0	450	1.0	320	4xΦ8x12	220/380	11/7	2.9	119	15.9	230	16	520	150	110.5	90
450-1.5	450	1.5		4xΦ8x12	220/380	19/11	4.3	179	23.9	230	16
450-1.6	450	1.6		4xΦ8x12	220/380	19/11	4.6	191	25.5	230	16
450-1.75	450	1.75		4xΦ8x12	220/380	19/11	5.0	209	27.9	230	16
630-1.0	630	1.0	320	5xΦ8x12	220/380	16/10	4.0	119	15.9	320	16	570	200	110.5
630-1.5	630	1.5		5xΦ8x12	220/380	27/16	6.0	179	23.9	320	16
630-1.6	630	1.6		5xΦ8x12	220/380	27/16	6.4	191	25.5	320	16
630-1.75	630	1.75		5xΦ8x12	220/380	27/16	7.0	209	27.9	320	16
