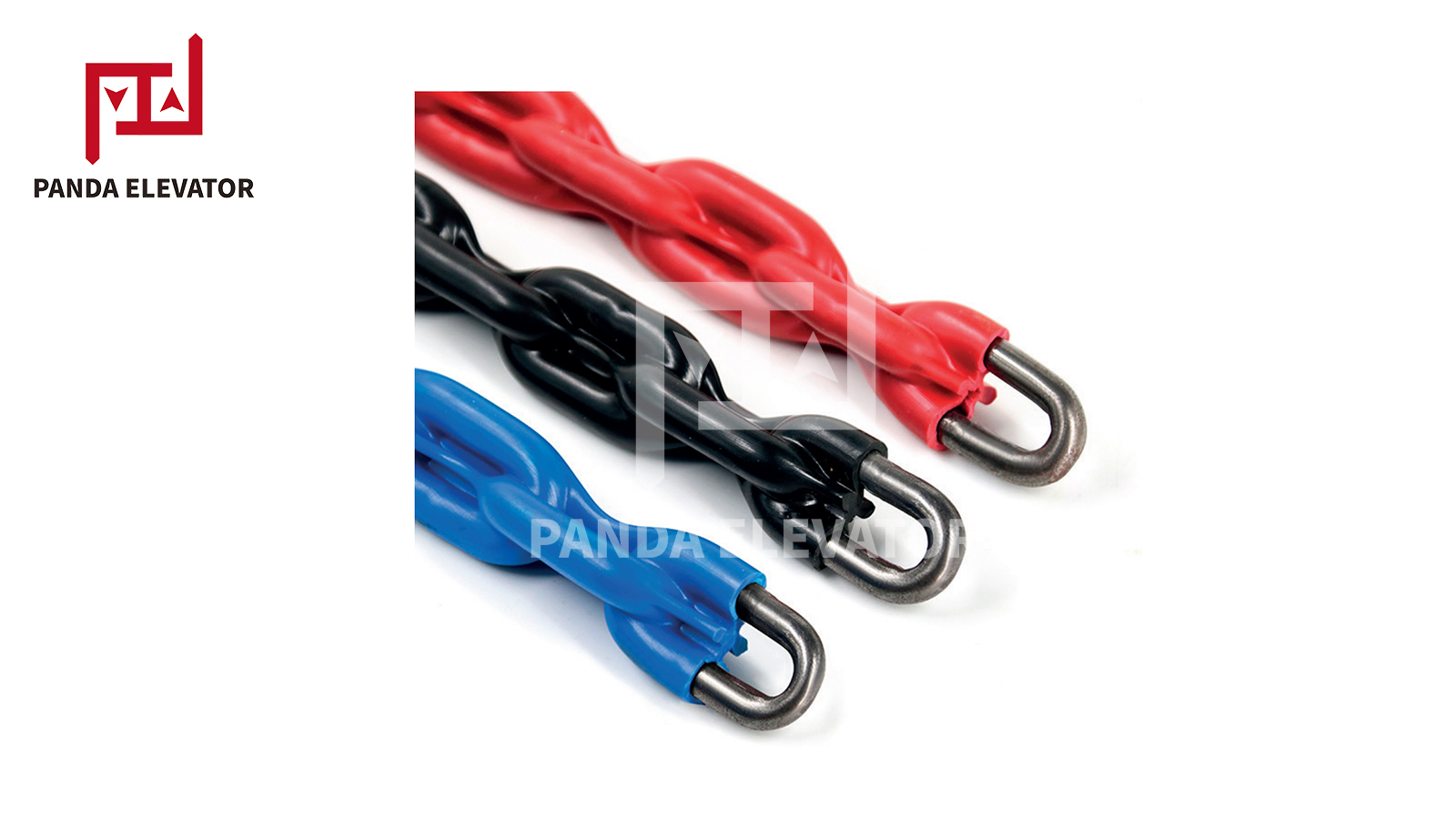

Elevator compensation Chain

The elevator compensation chain is an important balancing component of high-rise elevators, mainly used to offset the weight difference caused by changes in the length of the traction steel wire rope during elevator operation, ensuring smooth and safe operation.

Corrosion Resistance

Long service life, corrosion resistance, and beautiful appearance.
Noise Reduction

Significantly reduces operating noise and improves the usage environment.
Smooth Operation

Reduce the shaking and swaying of the elevator during operation, and improve ride comfort.
Safe and reliable

It can avoid the risk of breakage and ensure the safe operation of elevators.

Elevator Parts

HOT PRODUCTS

Elevator Car Door Operator Center opening OMJ102A

Elevator Leveling Sensor

Set A Consultation Today

*We respect your confidentiality and all information are protected.

Send

Description

Reviews

Basic Information

Type	Elevator Compensation Chain	MOQ	1pc

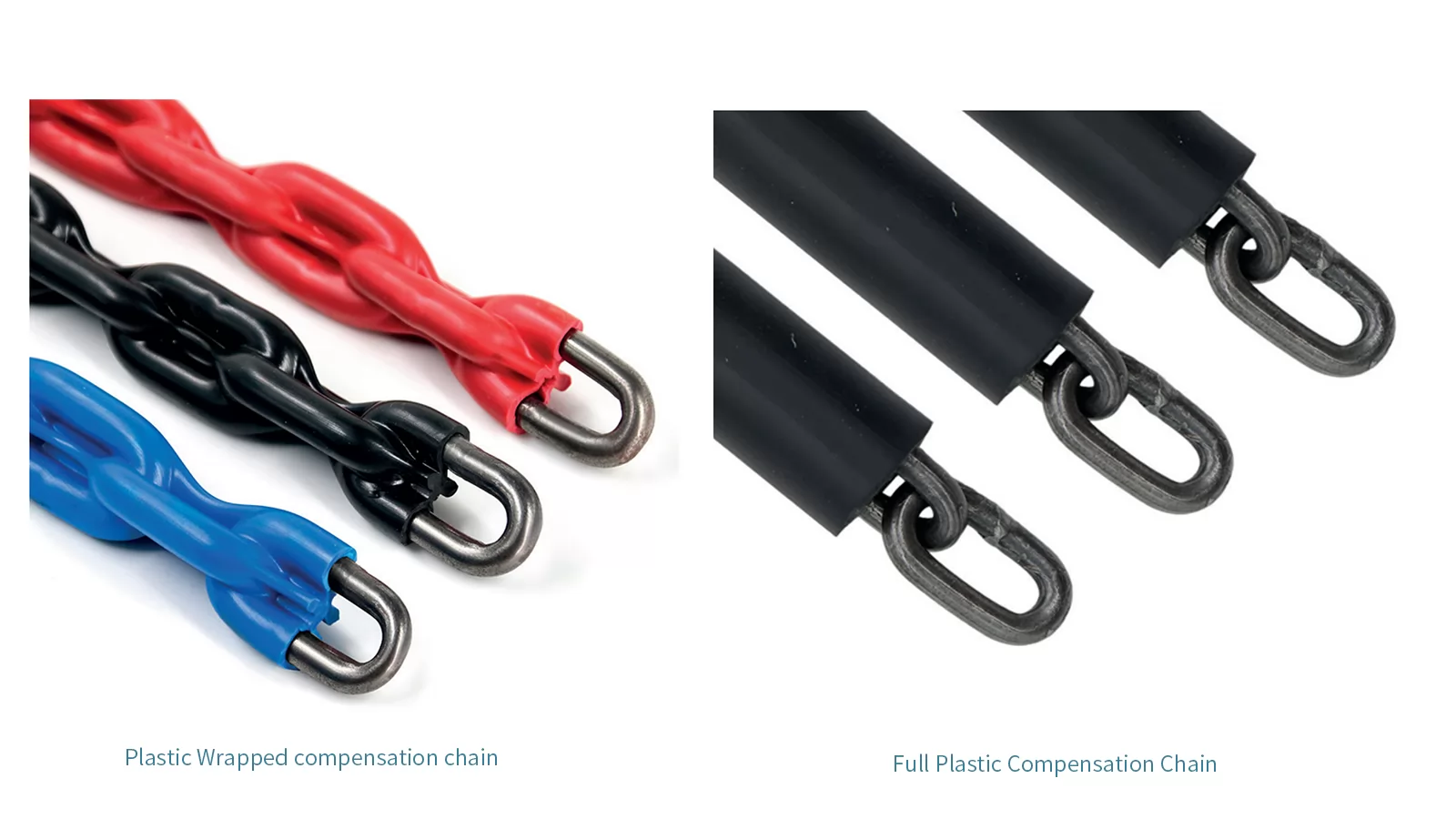

Material	Plastic-wrapped/Full Plastic	Shipping	FCL/LCL
Warranty	1 year	Package	Standard package

Specification

Type	Model	Weight(kg/m)	Min bending diameter (mm)	External diameter(mm)	Broken load( ≥ KN)	Max length(m)	Min bending diameter(mm)
Plastic-wrapped Compensation Chain	PD-PW-Φ6	0.89±0.2	260	/	13	180	/
	PD-PW-Φ7	1.28±0.2	260		18	185
	PD-PW-Φ8	1.5±0.2	260		23.5	190
	PD-PW-Φ9	2.03±0.2	280		30	190
	PD-PW-Φ10	2.39±0.2	280		37	230
	PD-PW-Φ11	2.95±0.2	300		44.5	230
	PD-PW-Φ12	3.33±0.2	300		52	240
	PD-PW-Φ13	3.80±0.2	320		62.23	240
	PD-PW-Φ14	4.46±0.2	320		70	240
	PD-PW-Φ16	5.95±0.2	320		94.5	240

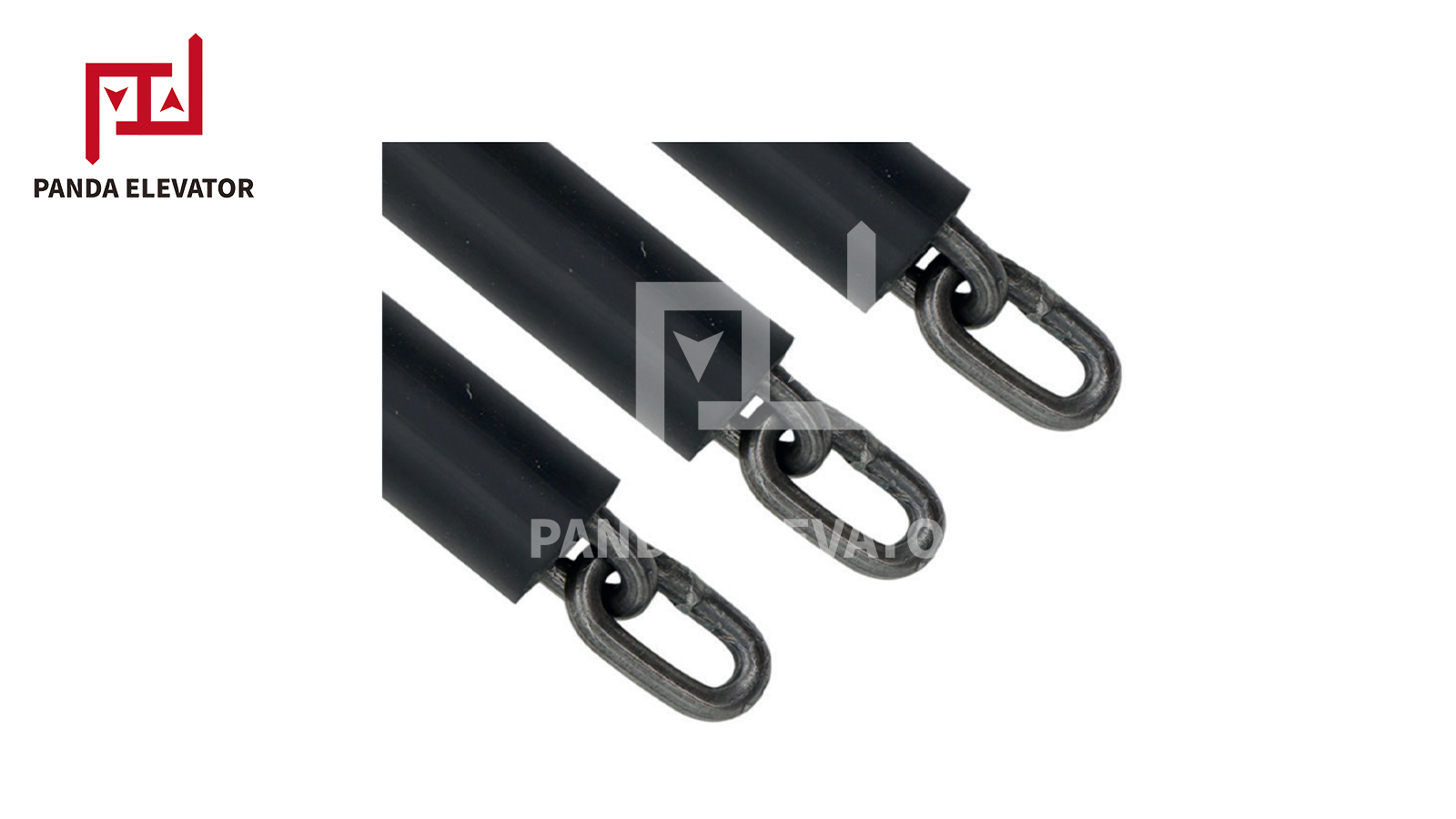

Full Plastic Compensation Chain	PD-FP-075	1.12±0.2	/	24±1.5	11.25	/	610
	PD-FP-100	1.49±0.2		29±1.5	13.32		610
	PD-FP-120	1.88±0.2		31±1.5	18.00		610
	PD-FP-130	2.0±0.2		33±1.5	18.20		610
	PD-FP-150	2.24±0.2		35±1.5	23.66		610
	PD-FP-200	2.98±0.2		38±1.5	29.97		660
	PD-FP-250	3.73±0.2		42±1.5	40.32		660
	PD-FP-300	4.47±0.2		45±1.5	46.58		660
	PD-FP-350	5.20±0.2		49±1.5	53.40		660
	PD-FP-400	5.96±0.2		52±1.5	62.60		660
